Wall mounted smart key cabinet solution

Issuing time: 2022-06-30 Browse:

Boyue smart manufacturing "RFID smart key management cabinet" is a professional management key cabinet specially provided for a large number of key management users by combining RFID radio frequency induction technology and computer information management system. Thus, an intelligent management system which can realize the functions of remote application, approval, record query and online monitoring is developed.

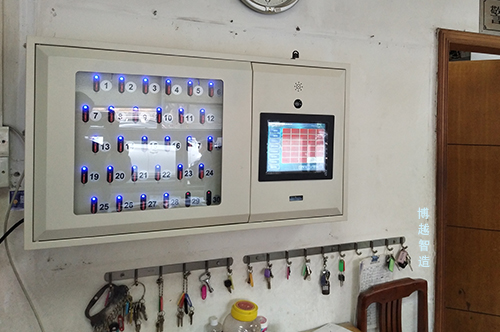

Wall mounted smart key cabinet

Wall mounted smart key cabinet


(RFID) the 30 position wall mounted smart key cabinet mainly uses code scanning (customized key cabinet can use face recognition, fingerprint, code scanning, password, card swiping, etc.) authentication to access the key. Only after passing the verification can the key cabinet be opened and the key be returned.


Key cabinet product parameters:


master control Industrial computer and touch screen integrated machine, 7-inch touch screen and 10 Inch Touch screen are optional


Number of keys 30 bits (customizable)


Host configuration 4418 A9 1.5GHz 2G+32G


system Linux or windows


Power Supply 12V


Authentication mode Fingerprint and card swiping (customized options: fingerprint, face, password, card swiping and QR code)


Nixie tube Optional


Power consumption Input voltage 12V, power consumption 18W


Cabinet material 1.0 high quality cold rolled steel sheet


Key identification form RFID tag electronic identity reading


Photographing function Fisheye camera (optional)


Overall dimension Height 500mm * width 800mm * depth 330mm (support customization)


Secondary development Support secondary development, customization or OEM


Software function introduction:


1. The smart key cabinet can strictly manage the authorized keys.


2. RFID key real-time on-site detection, remote query of key use, automatic record of key use log, abnormal alarm record, identification of true and false keys, two person verification and cabinet opening, binding key photography, wechat applet code scanning, door opening and key return.


3. Be able to manage the relevant data of all managers, including the name of managers, card reading information, key number, etc.


4. The smart key cabinet adopts safety electric lock: only authorized users can open it.


5. Record all operations of the system, with retrieval and printing functions; Corresponding reports can be generated according to RFID key number, user or time.


6. The smart key cabinet can be equipped with backup battery, and the lithium battery can still maintain memory when the system is powered off for a long time.


7. The smart key cabinet can be equipped with nixie tube with low power consumption. The key position can be queried quickly.


8. Each key position is equipped with LED indicator. When the key cabinet is removed and returned, the LED flashes. When the key is returned wrongly, the LED has a warning state.


9. The smart key chain can provide a variety of colors. The stainless steel ring of the key chain seals the key once. The RFID electronic identity tag is embedded in the smart key chain, which can identify the electronic identity information of the key without contact.


10. The mobile phone approval process can be used to control the retrieval and return of keys.


Application scenario:


Public security system, troops, enterprises and institutions, community property, automobile 4S stores, hotels, hospitals, libraries, airports, etc.


Key cabinet color optional:

Wall mounted smart key cabinet with optional color

Wall mounted smart key cabinet with optional color
