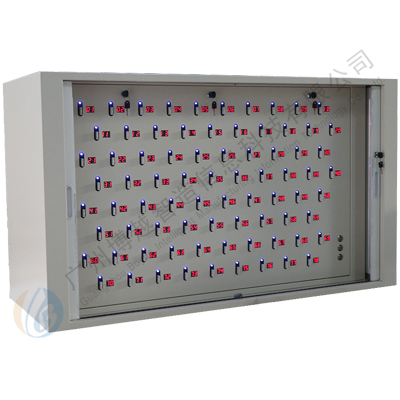

Boyue Intelligent Manufacturing "RFID Sliding Door Key Management Cabinet" is a professional management cabinet that combines RFID radio frequency induction technology and computer information management system, specially designed for users with large-scale key management needs key cabinet. As a result, an intelligent management system that can realize remote application, approval, record query, online monitoring and other functions has been developed, which integrates key issuance, collection, storage and recording.
(RFID) sliding door key management cabinet uses a modern and simple key to open the sliding door, and the key is mainly networked (customized key cabinet can use face recognition, fingerprint The key can be accessed only through authentication.
Key Cabinet Product Parameters :
| master | Industrial computer, touch screen all-in-one machine 7-inch touch screen, 10-inch touch screen optional |
| Number of keys | 78 bit (customizable) |
| host configuration | 4418 A9 1.5GHz 2G+32G |
| system | Linux or WINDOWS (supported) |
| power supply | 12V |
| verification method | Networking (customization optional: fingerprint, face, password, credit card, QR code) |
| Digital Tube | optional |
| Power consumption | Input voltage 12V, power consumption 18W |
| Cabinet material | 1.0 high quality cold rolled steel plate |
| key identification form | RFID tag electronic identity reading |
| camera function | Fisheye camera (optional) |
| Dimensions | Height 600mm * Width 1100mm * Depth 350mm (support customization) |
| Secondary development | Support secondary development customization or OEM |
Software function introduction:
1. The smart key cabinet can strictly manage the authorized keys.
2. Real-time presence detection of RFID keys, remote query of key usage, automatic recording of key usage logs, abnormal alarm records, identification of true and false keys, double verification to open cabinets, binding keys to take photos, WeChat applet scan code to open the door to retrieve keys.
3. Can manage the relevant information of all management personnel, including: management personnel's name, card reading information, key number under management, etc.
4. The smart key cabinet adopts a safety electric control lock: only authorized users can open it.
5. Record all operations of the system, with retrieval and printing functions; corresponding reports can be generated according to the RFID key number, user or time.
6. The smart key cabinet can be equipped with a backup battery, and when the system is powered off for a long time, the lithium battery can still keep the memory.
7. The smart key cabinet can be equipped with digital tubes, with low power consumption. The key location can be quickly inquired.
8. Each key position is equipped with an LED indicator light. When the key cabinet is retrieved, the LED light flashes. When the key is returned by mistake, the LED light has a warning state.
9. The smart keychain can provide a variety of colors, the keychain stainless steel ring seals the key once, and the RFID electronic identity tag is implanted in the smart keychain, which can be hung and placed without contact to identify the electronic identity information of the key.
10. The mobile phone approval process can be used to control the retrieval and return of keys.
Application scenarios:
Public Security System, Army, Enterprise, Community Property, Auto 4S Store, Hotel, Hospital, Library, Airport, etc.
Key Cabinet Colors Available:
