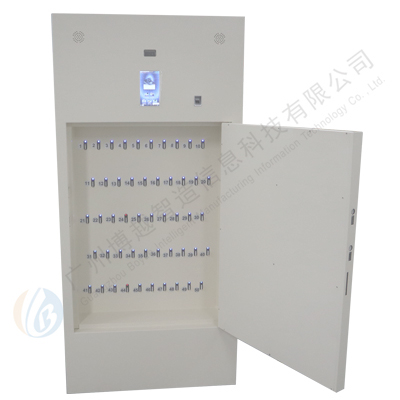

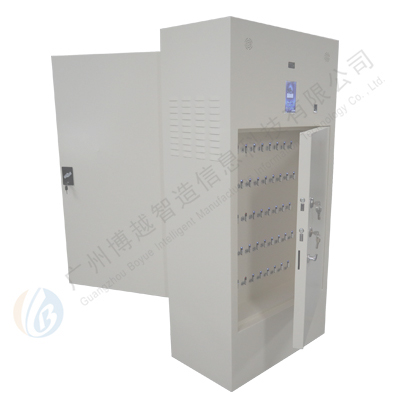

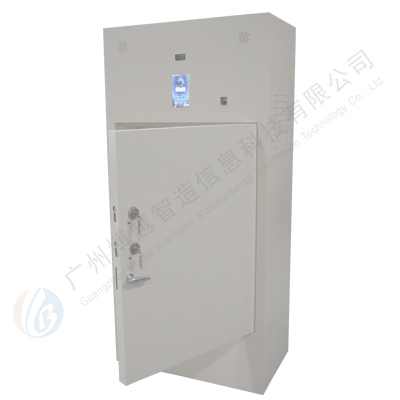

Boyue Zhizao "RFID smart key cabinet" is a professional management key cabinet that combines RFID radio frequency induction technology and computer information management system, and is specially provided for users with large-scale key management needs. As a result, an intelligent management system that can realize remote application, approval, record query, online monitoring and other functions has been developed, which integrates key issuance, collection, storage and recording.
The (RFID) smart key locker is equipped with double key management function, fingerprint authentication, (face recognition, fingerprint + password, swipe card) can be used to open the key locker and retrieve the key.
Key Cabinet Product Parameters :
| master | Industrial computer, touch screen all-in-one machine 7-inch touch screen, 10-inch touch screen optional |
| Number of keys | 50 (can be customized) |
| host configuration | 4418 A9 1.5GHz 2G+32G |
| system | Linux or WINDOWS |
| power supply | 12V |
| verification method | Fingerprint, face (customized optional: fingerprint, face, password, credit card, QR code) |
| Digital Tube | optional |
| Power consumption | Input voltage 12V, power consumption 18W |
| Cabinet material | 1.0 high quality cold rolled steel plate |
| key identification form | RFID tag electronic identity reading |
| camera function | Fisheye camera (optional) |

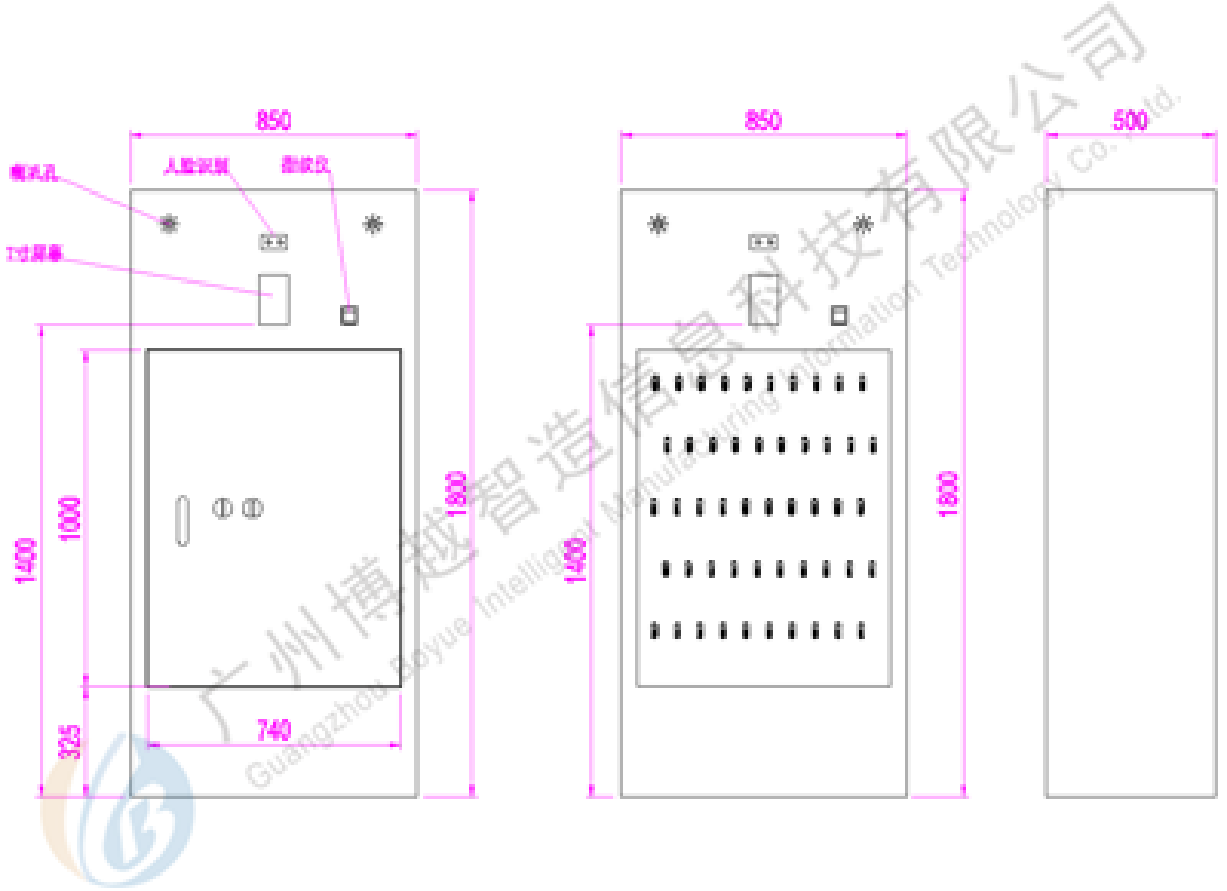

| Dimensions | Height 1800mm *width 850mm*depth 500mm (support customization) |
| Secondary development | Support secondary development customization or OEM |
Software function introduction:
1. The smart key cabinet can strictly manage the authorized keys.
2. Real-time presence detection of RFID keys, remote query of key usage, automatic recording of key usage logs, abnormal alarm records, identification of true and false keys, double verification to open cabinets, binding keys to take photos, WeChat applet scan code to open the door to retrieve keys.
3. Can manage the relevant information of all management personnel, including: management personnel's name, card reading information, key number under management, etc.
4. The smart key cabinet adopts a safety electric control lock: only authorized users can open it.
5. Record all operations of the system, with retrieval and printing functions; corresponding reports can be generated according to the RFID key number, user or time.
6. The smart key cabinet can be equipped with a backup battery, and when the system is powered off for a long time, the lithium battery can still keep the memory.
7. The smart key cabinet can be equipped with digital tubes, with low power consumption. The key location can be quickly inquired.
8. Each key position is equipped with an LED indicator light. When the key cabinet is retrieved, the LED light flashes. When the key is returned by mistake, the LED light has a warning state.
9. The smart keychain can provide a variety of colors, the keychain stainless steel ring seals the key once, and the RFID electronic identity tag is implanted in the smart keychain, which can be hung and placed without contact to identify the electronic identity information of the key.
10. The mobile phone approval process can be used to control the retrieval and return of keys.
Application scenarios:
Public security system, troops, enterprises and institutions, residential properties, automobile 4S shops, hotels, hospitals, libraries, airports, etc.
Key Cabinet Colors Available:
